1.1 xArrow SCADA 1.3.0
The Android device used to test is Huawei Honor 6+ (Android 4.4.2), it connected to the router via WIFI, and its IP assigned by the router is 192.168.1.100. The phone have already installed the xArrow SCADA APP (the apk file can be found at [xArrowAndroid Install Folder\Out\ANDROID_BIN\xArrowAndroid.apk]).

1.2 Modbus Slave 6.2
Modbus Slave is a modbus simulation program, it install on the computer, worked as a modbus device. The computer connect to the router, and the IP address is 192.168.1.102.

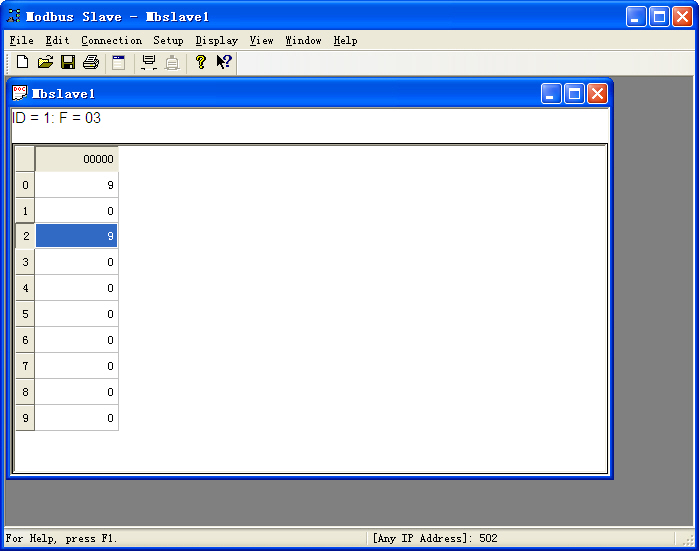

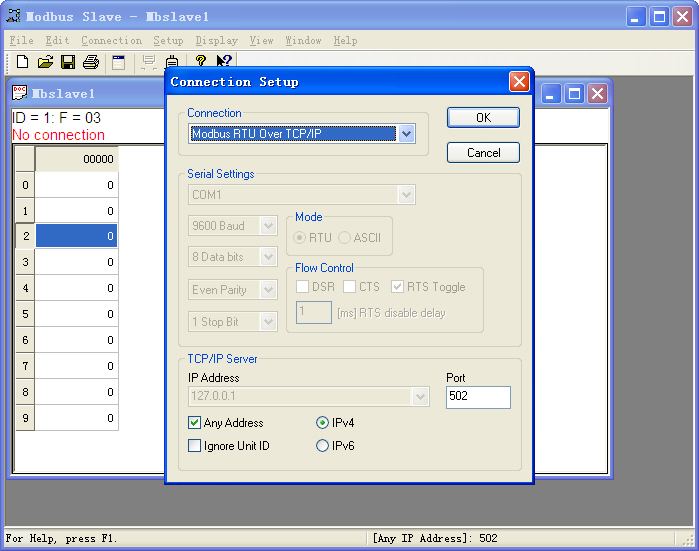

Launch Modbus Slave, configure its connection as Modbus RTU Over TCP/IP, and configure 10 tags, as follows:

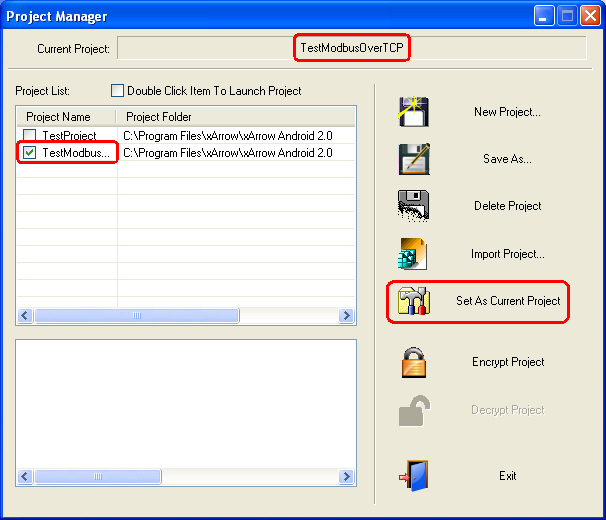

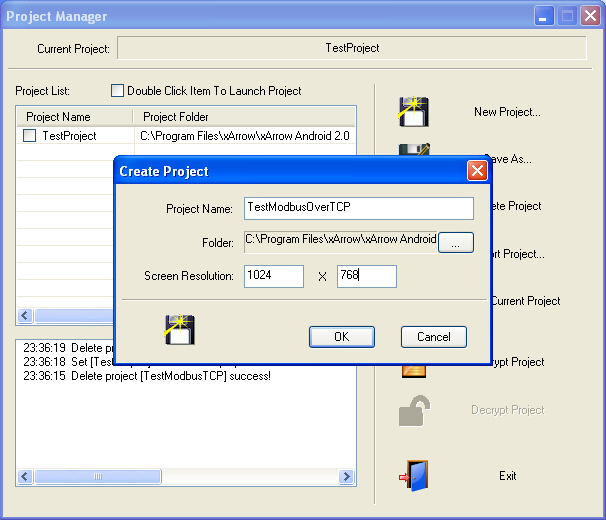

2.1 Create New Project

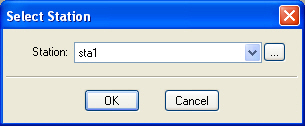

2.2 Create Station

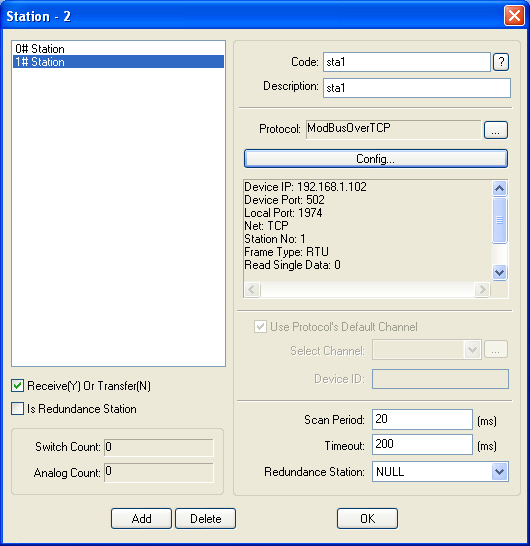

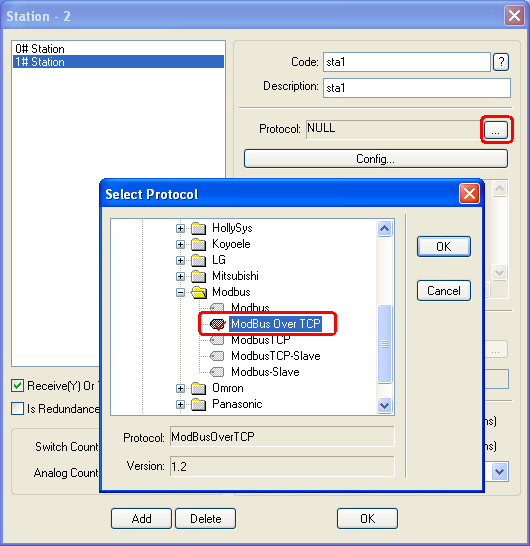

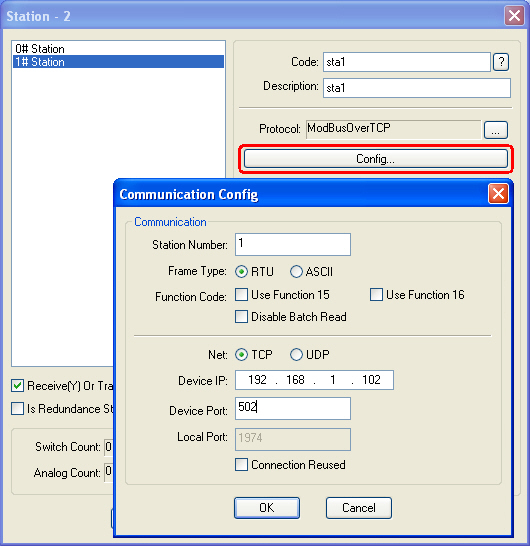

Click menu [Data Configuration\Station…] to create station, as follows:








2.3 Configure Analog

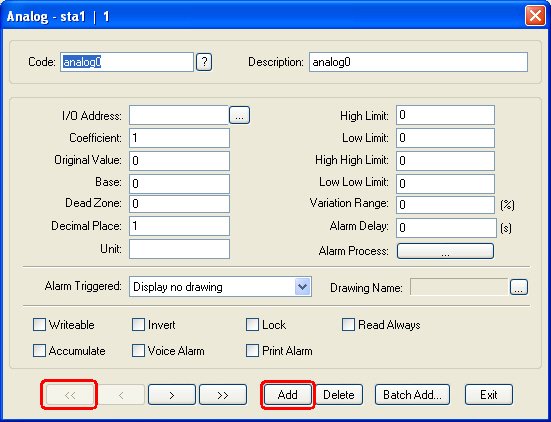

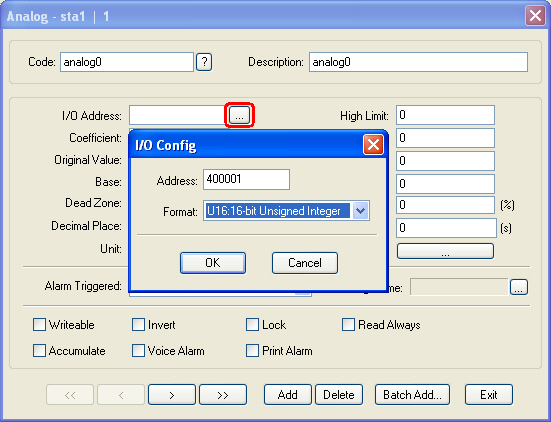

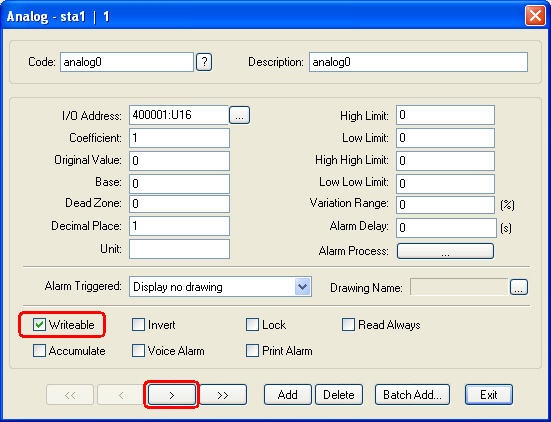

Configure [Data Configuration\Analog…] to set analog tags, as follows:

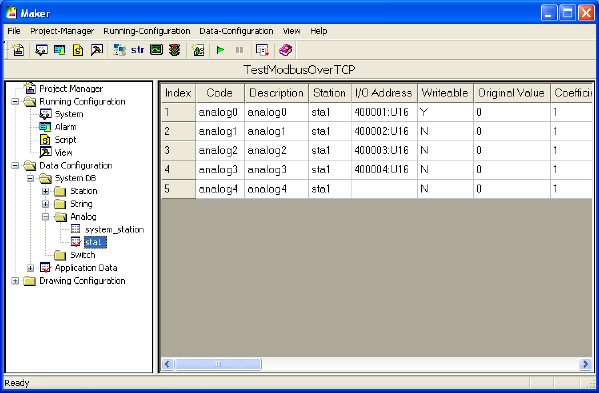

When all the tag set OK, as follows:

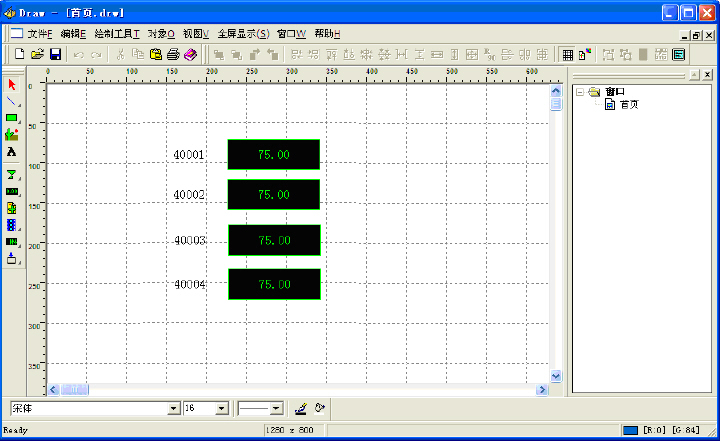

2.4 Make Drawings

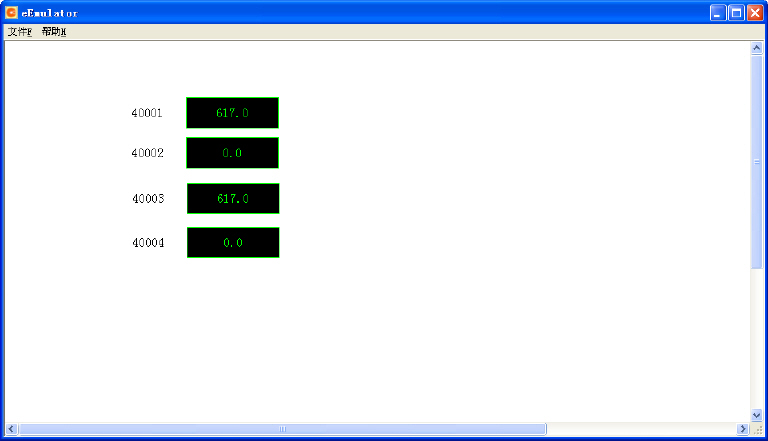

2.5 Run Emulator

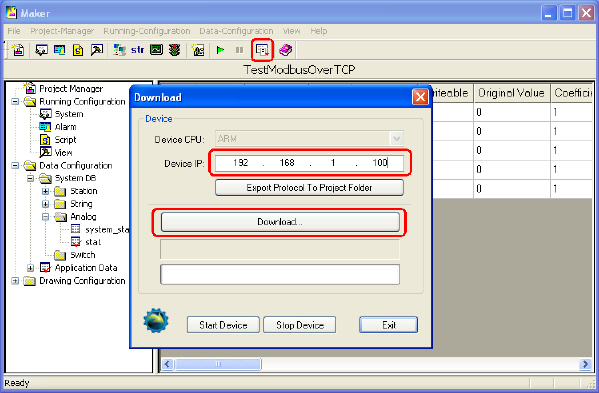

2.6 Download Project

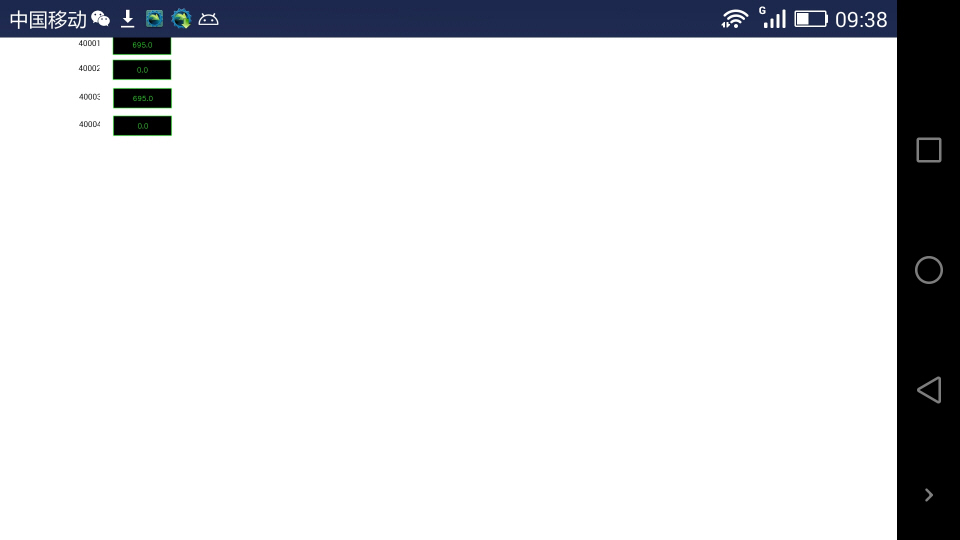

Note: the xArrow SCADA should already started in the android phone.
